Description

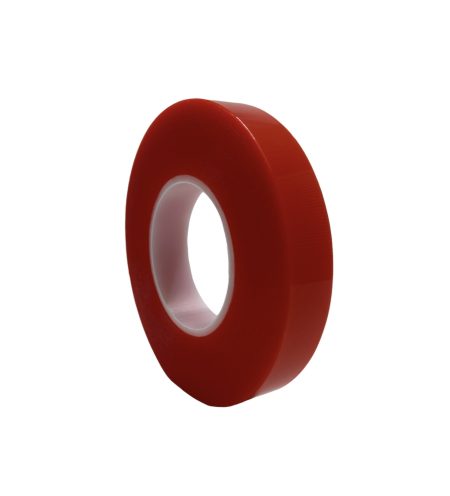

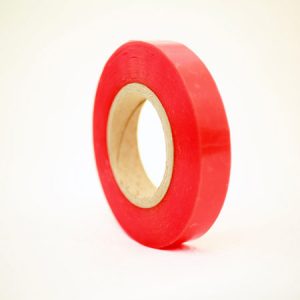

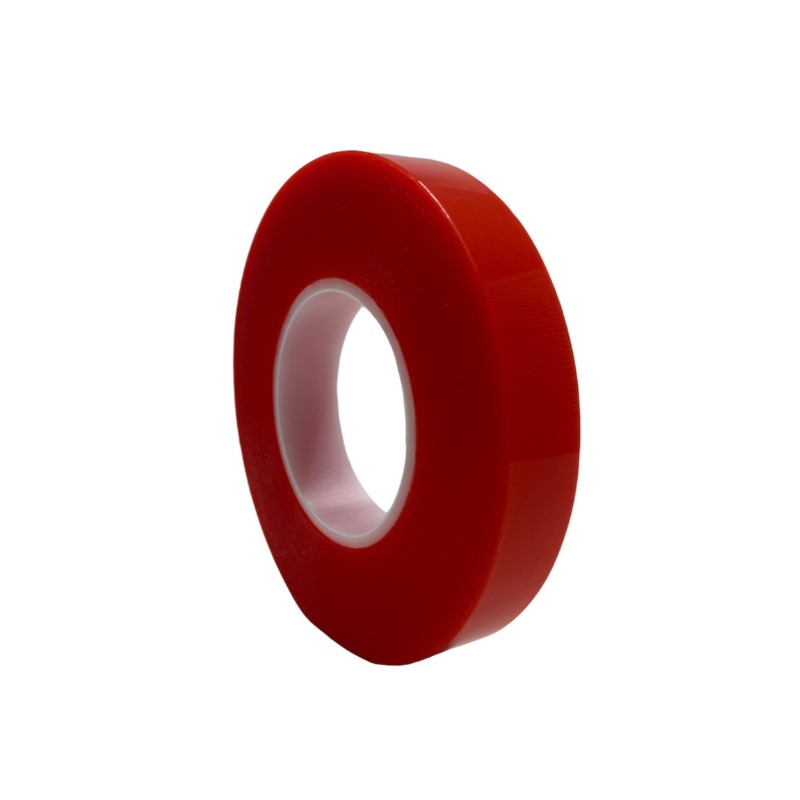

High performance tape 6105 is a thin double-coated solvent acrylic polyester (PES) tape with a red filmic liner. It has a siliconized red polypropylene release system for a professional easy use.
Suitable for internal and external applications. Exhibits a high level of adhesion, will bond high and low surface energy materials. With a high tack, exceptional shear resistance and good UV resistance.
It will bond many different substrates including metals, glass, wood, most plastics and painted surfaces. Often used to hem large banners and bond plastics in signage. 6105 is most useful in panel, nameplate, profile, decorative trim and banner hemming applications.
Temperature range: -30°C to 120°C
Thickness: 0.25mm
Available in 12mm, 19mm and 25mm x 0.25mm x 50m (other variations available upon request)
See also clear foamed acrylic tape 6110, white foamed acrylic 6110 signmakers tape.
Benefits of high performance tape 6105
- Ideal for demanding bonding applications
- High strength
- Suitable for internal and external applications
- Bonds high and low surface energy materials
- High tack, exceptional shear resistance, good UV resistance
- Temperature range -30°C to + 120°C
- Thickness: 0.25mm
- Available in 12mm, 19mm and 25mm x 0.25mm x 50m (other variations available upon request)
How to apply high performance tape 6105
Before applying high performance tape 6105, surfaces should be clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.
- Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
- The ideal application temperature is between 15 – 25°C.
- Primers can increase the bond durability and surface tension for difficult to bond materials. We recommend CTA Primer or CTA UV Identifiable Primer to achieve the best results.
- Ensure uniform stress distribution.
CTA IPA Cleaner / Degreaser Kit
View our full range of Structural and Thick Double Sided Acrylic Tapes below:
| Product | Colour | Thickness | Side / Adhesive | Temperature Range | Shear / Tensile | Key Feature |
|---|---|---|---|---|---|---|
| 6110 | Clear | 1.1mm | Double / Acrylic | -30°C – +180°C | Very High | High Strength |
| 6110 | White | 1.1mm | Double / Acrylic | -30°C – +180°C | Very High | High Strength |
| 6110 | Grey | 1.1mm | Double / Acrylic | -30°C – +180°C | Very High | High Strength |
| 6118LSE | Grey | 1.1mm | Double / Acrylic | -40°C – +160°C | Very High | High Initial Tack |
| 61122R | Grey | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Low Surface Energy |
| 6189HT | Grey | 1.2mm | Double / Acrylic | -40°C – +200°C | Very High | High Temperature Resistance |
| 6105 | Clear | 0.25mm | Double / Acrylic | -20°C – +130°C | Very High | High Performance |
| 5175HD | White | 1.1mm | Double / Acrylic | -40°C – +90°C | High | Excellent Weather Performance |

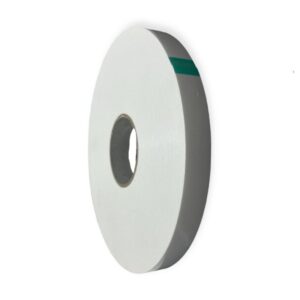

| 5110 | White / Black | 1.1mm | Double / Acrylic | -20°C – + 90°C | Medium | Ideal for Light Weight Products |
| 5120 | White / Black | 2mm | Double / Acrylic | -20C – + 90°C | Medium | Ideal for Light Weight Products |
| 512525 | White / Black | 1mm | Double / Foam | -20C – + 90°C | Light | Ideal for Light Weight Signage |
| 5310 | White / Black | 1mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
| 5320 | White | 2mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
| 5508 | White | 0.8mm | Double / Acrylic | -20°C – + 90°C | High | Ideal for Signage Industry |
| 5508 | Black | 0.8mm | Double / Acrylic | -20°C – + 90°C | High | Ideal for Signage Industry |
Purchasing special thicknesses
Our high performance tape 6105 is available to purchase online in single rolls at 0.25mm thickness. For other thicknesses, as well as specific slit widths and die cuts, please contact us. All prices are inclusive of VAT.
If you have any questions, do not hesitate in contacting us via the yellow chatbox, fill out our online contact form, email us at [email protected], or call us directly on +44 (0) 121 378 2909.
