Description

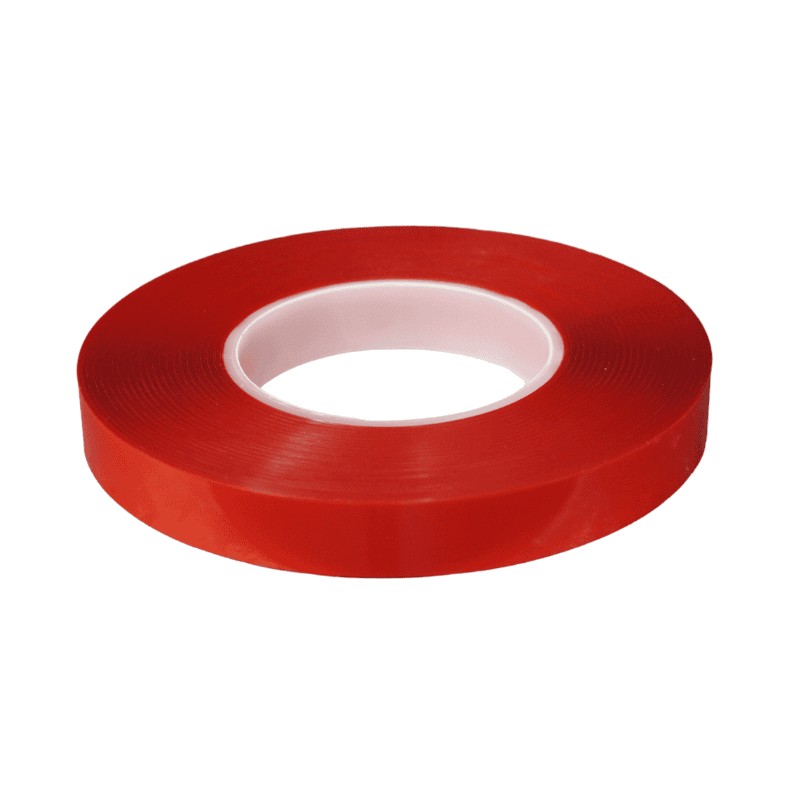

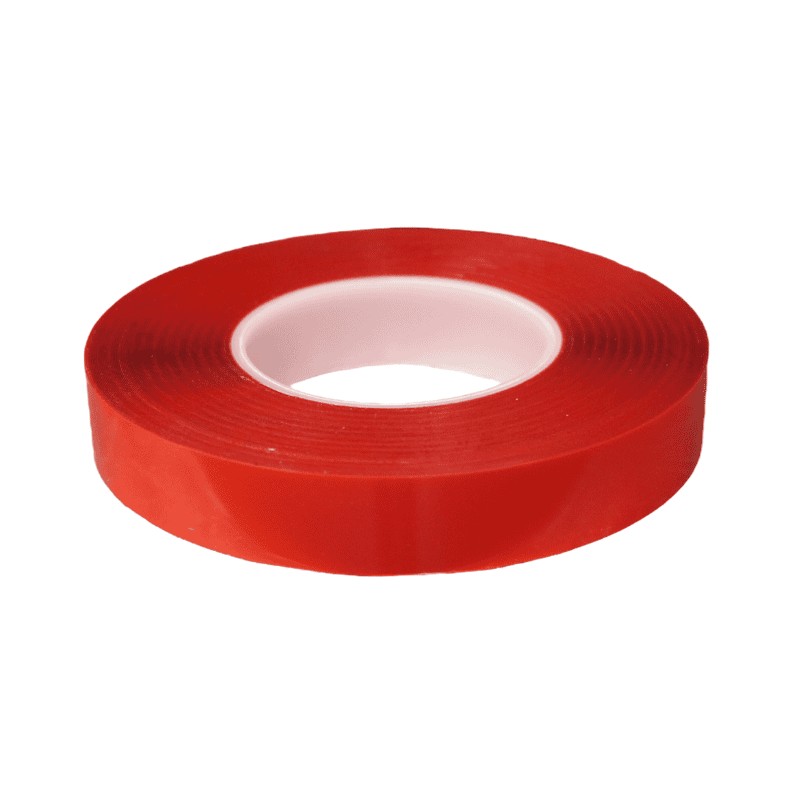

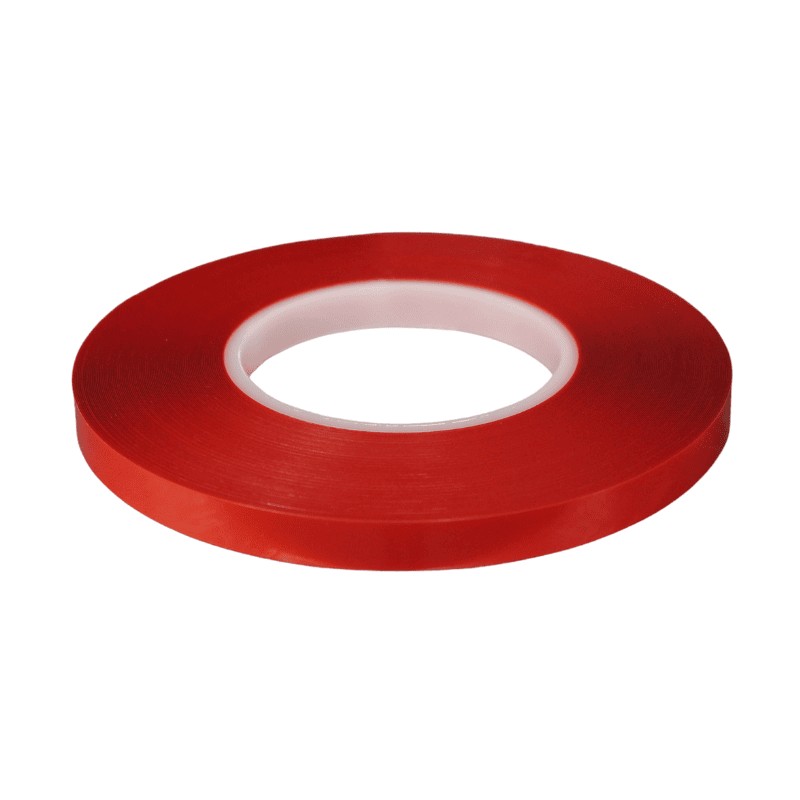

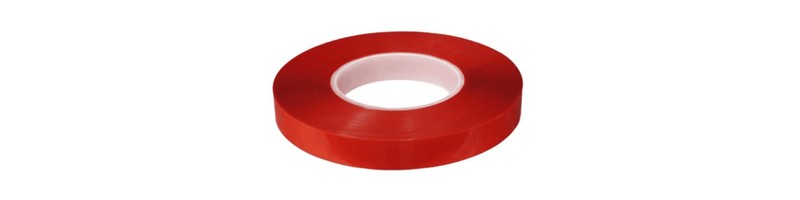

Clear foamed acrylic tape 61100 is a ultra high performance, optically clear, thin, foamed acrylic gel (double sided) tape. It has a thickness of 0.25mm and a red filmic liner for easy removal. Suitable for bonding plastics, polycarbonate, aluminium, glass and powder coated metals.
High temperature resistance, tensile and shear performance. Unaffected by UV and has great water resistance. Suitable for bonding internal and external applications. Can bond to high energy (HSE) and low energy (LSE) surfaces.
Used in furniture and lighting, signage, metal fabrication and manufacturing industries.
Temperature range: -20°C to +180°C
Thickness: 0.25mm
Available in 12mm, 19mm and 25mm x 33m (other variations available).
Benefits of clear foamed acrylic tape 61100
- Clear foamed acrylic tape 61100 is capable of bonding most metals, plastics, glass and polycarbonate.
- The bond strength is enough to rival welds, screws, rivets and other mechanical fixings.
- Extremely versatile, ultra-high performance product
- Bonds high energy (HSE) and low energy (LSE) surfaces
- Used on internal and external applications
- Temperature range: -20°C to +180°C
- Thickness: 0.25mm
- Available in 10mm, 12mm, 19mm, 25mm x 33m (other variations available).
This product is also available in 1mm thickness, please see Clear Foamed Acrylic Tape 6110
How to apply clear foamed acrylic tape 61100
Before applying this acrylic tape, surfaces should be clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.
- Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
- The ideal application temperature is between 15 – 25°C.
- Primers can increase the bond durability and surface tension for difficult to bond materials. We recommend CTA Primer or CTA UV Identifiable Primer to achieve the best results.
- Ensure uniform stress distribution.
View our full range of Structural and Thick Double Sided Acrylic Tapes below:
| Product | Colour | Thickness | Side / Adhesive | Temperature Range | Shear / Tensile | Key Feature |
|---|---|---|---|---|---|---|
| 6110C | Clear | 1mm | Double / Acrylic | -30°C – +200°C | Very High | Structural Bonding / Transparent |
| 6110W | White | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding / Sign Makers |
| 61100 | Clear | 0.25mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding / Thin |
| 6117 | Grey | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Very High Performance |
| 6118LSE | Grey | 0.64/0.8/1.1/ 2mm | Double / Acrylic | -30°C – +180°C | Very High | Structural Bonding / Low Surface Energy |
| 6119 | Black | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding |
| 6105 | Clear | 0.25mm | Double / Acrylic | -30°C – +120°C | Very High | High Performance / Thin |
| 5110 | White / Black | 1mm | Double / Acrylic | -20°C – + 80°C | Medium | Ideal for Light Weight Products |
| 5120 | White / Black | 2mm | Double / Acrylic | -20°C – + 90°C | Medium | Ideal for Light Weight Products |
| 512525 | White / Black | 1mm | Double / Foam Pad | -20°C – + 80°C | Light | Ideal for Light Weight Signage |
| 5310 | White / Black | 1mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
| 5320 | White | 2mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
| 5508 | White | 1mm | Double / Acrylic | -20°C – + 80°C | High | Ideal for Signage & Construction |
| 5508 | Black | 1mm | Double / Acrylic | -20°C – + 80°C | High | Ideal for Signage Construction |
Purchasing special thicknesses
Our clear foamed acrylic tape 61100 is available to purchase online in single rolls at 0.25mm thickness. For specific slit widths and die cuts available, please contact us. All prices are inclusive of VAT.
If you have any questions, do not hesitate to contact us via the yellow chatbox, fill out our online contact form, email us at [email protected], or call us directly on +44 (0) 121 378 2909.
