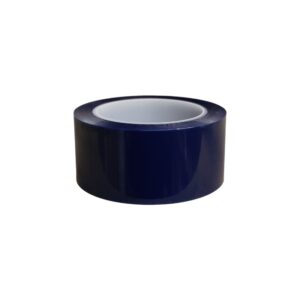

High Temperature Film Tape 3150

From: £6.89

SKU: N/A Categories: ,

Description

High temperature film tape 3150 is a translucent polyester film-based tape, coated with a silicone polyester thermostable adhesive system.  This product has an excellent temperature performance of +180°C and is UL Approved. High temperature film tape 3150’s thermostable polyester film is easy to remove in one piece and does not leave a residue.

3150: 3 (tapes and accessories), 1 (acrylic), 50 (high temperature)

Benefits of high temperature film tape 3150

  • High temperature film tape 3150 masks off and protects areas which are not required to be coated during the powder coating process.
  • This tape can also be used for wrap cast resin capacitors, transformer coil, layer and final insulation along with printed circuit board masking during etching and soldering.high-temperature-film-tape-3150

How to apply high temperature film tape

Before applying high temperature film tape 3150, surfaces should be clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.

  • Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
  • The ideal application temperature is between 15 – 25°C.
  • Primers can increase the bond durability and surface tension. We recommend CTA Primer or CTA UV Identifiable Primer to achieve the best results.
  • Ensure uniform stress distribution.

Purchasing information

Our CTA tape 3150 is available to purchase online in the following translucent colours: clear, green, red and blue. This tape is available in a range of widths and 66 metres in length. If you have any other specific requirements, please contact us. All prices are inclusive of VAT.

If you have any questions, do not hesitate to contact us via the yellow chatbox, fill out our online contact form, email us at [email protected], or call us directly on +44 (0) 121 378 2909.

Additional information

WeightN/A
Specification

Blue 20mm width x 66m length, Blue 50mm width x 66m length
