Description

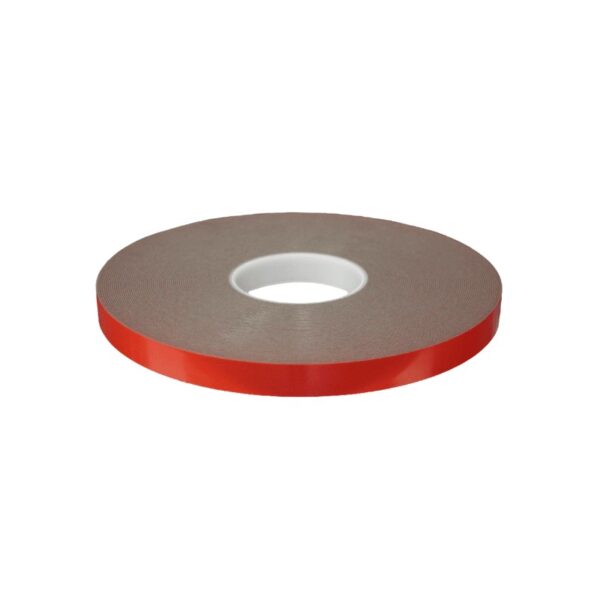

Grey foamed acrylic tape 6117 is an ultra high performance, double-sided tape with a thickness of 1.1mm. It has a red filmic easy release liner. Suitable for plastics, metals and other HSE (high surface energy) surfaces.
Unaffected by UV and has great water resistance. Suitable for long term bonding applications, internal and external.
Often used for bonding automotive accessories, commercial vehicle panels and signage.
Temperature range: -20°C to +180°C
Thickness: 1.1mm
Available in 12mm, 19mm, 25mm x 33m (other variations available).
Benefits of grey double sided tape 6117
- Bonds plastics, metals and other HSE (high surface energy) surfaces.
- Great UV and water resistance
- Used on internal and external applications
- Temperature range: -20°C to +180°C
- Thickness: 1.1mm
- Available in 12mm, 19mm, 25mm x 33m (other variations available).
See also low surface energy automotive foam tape 6118LSE, high performance black acrylic tape 6119
How to apply grey double sided tape 6117
Before applying this acrylic tape, surfaces should be clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.
- Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
- The ideal application temperature is between 15 – 25°C.
- Primers can increase the bond durability and surface tension for difficult to bond materials. We recommend CTA Primer or CTA UV Identifiable Primer to achieve the best results.
- Ensure uniform stress distribution.
View our full range of Structural and Thick Double Sided Acrylic Tapes below:
Product | Colour | Thickness | Side / Adhesive | Temperature Range | Shear / Tensile | Key Feature |
---|---|---|---|---|---|---|
6110C | Clear | 1mm | Double / Acrylic | -30°C – +200°C | Very High | Structural Bonding / Transparent |
6110W | White | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding / Sign Makers |
61100 | Clear | 0.25mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding / Thin |
6117 | Grey | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Very High Performance |
6118LSE | Grey | 0.64/0.8/1.1/ 2mm | Double / Acrylic | -30°C – +180°C | Very High | Structural Bonding / Low Surface Energy |
6119 | Black | 1.1mm | Double / Acrylic | -20°C – +180°C | Very High | Structural Bonding |
6105 | Clear | 0.25mm | Double / Acrylic | -30°C – +120°C | Very High | High Performance / Thin |
5110 | White / Black | 1mm | Double / Acrylic | -20°C – + 80°C | Medium | Ideal for Light Weight Products |
5120 | White / Black | 2mm | Double / Acrylic | -20°C – + 90°C | Medium | Ideal for Light Weight Products |
512525 | White / Black | 1mm | Double / Foam Pad | -20°C – + 80°C | Light | Ideal for Light Weight Signage |
5310 | White / Black | 1mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
5320 | White | 2mm | Double / Hot Melt Rubber | -10°C – + 65°C | Medium | Ideal for Interior Applications |
5508 | White | 1mm | Double / Acrylic | -20°C – + 80°C | High | Ideal for Signage & Construction |
5508 | Black | 1mm | Double / Acrylic | -20°C – + 80°C | High | Ideal for Signage Construction |
Purchasing special thicknesses
Our grey foamed acrylic tape 6117 is available to purchase online in single rolls at 1.1mm thickness. For specific slit widths and die cuts, please contact us. All prices are inclusive of VAT.
