Structural Adhesives 2202, 2206 & 2203NF are part of our New Generation 10:1 Ratio structural bonding range and purpose built adhesives for applications intended for the powder coating process.
Structural Adhesives 2202 & 2206 – Benefits
- This adhesive is capable of bonding aluminium, mild steel straps on structural sheet work.
- Sealing weld seams.
- Bonding stainless and aluminium letters and signs.
- Bonding mild steel
Structural Adhesives 2203NF – Benefits
- Low odour, non flammable and non carcinogenic
- Bonding locators to ACM without rad-through or witness marks
- Bonding mild steel frame to FRP and offering high vibration and impact resistance.
- Bonding fasteners to GRP and FRP moulded parts.
- Bonding and laminating composite panels.
- Composite and metal fabrication for seating construction.
We also have available in our New Generation structural bonding range 2203 which is a non-flammable 10:1 structural adhesive, and of course there is our best seller two part structural adhesive 2105 also available in a longer working time two part structural adhesive 2150
Two part structural adhesives technical information
Structural Adhesives 2202 /2206 and 2203NF are methyl methacrylate is the methyl ester of methacrylate acid. Its primary use is to manufacture a number of different plastics, but it is also the main ingredient in our range of adhesive products.
Methacrylate adhesives are supplied in a two part system that, when mixed, offer a controlled cure speed suited to the application. The cured adhesive can offer incredibly high tensile, shear and peel strength, whilst also resisting impact loads at both elevated and sub zero temperatures.
New Generation adhesives 2202 and 2206 offer high functional shear strength after the initial cure, which when further increases following an additional heat process. This unique chemistry allows these grades to not only maintain a high functional strength through the powder coating process, but actually improve in all aspects of functional strength performance. Both systems share common attributes, differing only in functional cure-speeds, allowing good application diversity from the same core chemistry.
2203NF is a non-flammable, new generation adhesive and represents a new level of performance for all 10:1 low shrinkage high elongation structural Methacrylate adhesive. 2203 offers a very tough and flexible bond, with high peel, fatigue and impact strength, at both low and elevated temperatures. Formulated from our innovative and bespoke blend of low-odour, non-flammable and non-carcinogenic monomers, this grade further extends our progress into responsible chemistry.
Two part structural adhesive 2202, 2206 and 2203NF are unrivalled in terms of convenience, ease of use and superior mechanical strength. Use for bonding aluminium, stainless steel. mild steel, UPVC, Polyesters, Granite, Marble, to name just a few compatible substrates. For more information please request our technical data sheets.
Structural Adhesives 2202, 2206 & 2203NF – How to apply
Our two part 10:1 ratio new generation, structural adhesive 2202 has a 2-4 minute open time and a Fixture time of 4-6 minutes. 2206 has a 6-10 minute open time and a Fixture time of 12-15 minutes. 2203NF has an open time of 3-4 minutes and a Fixture time of 7/10 minutes.Once mixed the working time of both products is the period whereby the adhesive remains fluid and is easily transferable between two or more mating surfaces. Temperature, volume and substrate have a direct effect on the length of this period as both products cure by exothermic reaction. Higher temperatures and larger volumes speed the reaction causing a reduction in open and cure time. Lower temperatures and smaller volumes slow the reaction time extending both the open and time and ultimate full cure time. Before dispensing, ensure that surfaces are clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.
- Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
- The ideal application temperature is between 21 – 40°C.
- Primers can increase the bond performance and surface tension.
- Ensure uniform stress distribution.

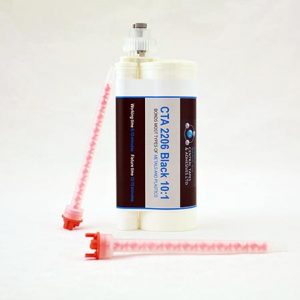

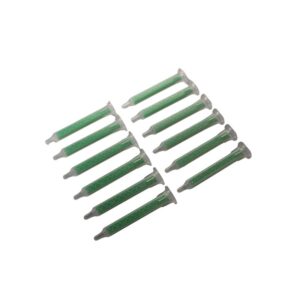

Our new generation adhesives 2202, 2203 and 2206NF are available to purchase. A trial kits consists of 2 x cartridges of adhesive in either 50ml or 490ml 10.1 cartridges, 4 nozzles and a manual applicator gun to suit. Please contact us to discuss box quantities and bulk purchasing.
Read our two part adhesives FAQs and guide to surface preparation for adhesives and best working practice.
View our full range of two part structural adhesives below:
|Product||Working time||Fixture time||Type||Colour||Cartridge size||Key features|
|2104||4-6 mins||10-12 mins||Acrylic||Pink & green||50ml||Bonds most metals and plastics|
|2105||5-7 mins||10-12 mins||Methacrylate||Neutral||50ml||Bonds most metals and plastics|
|2105||5-7 mins||10-12 mins||Methacrylate||Black||50ml||Bonds most metals and plastics|
|2105||5-7 mins||10-12 mins||Methacrylate||Neutral||400ml||Bonds most metals and plastics|
|2115||5-10 mins||25-30 mins||Methacrylate||Neutral||50ml||Bonds most metals and plastics|
|2115||5-10 mins||25-30 mins||Methacrylate||Neutral||400ml||Bonds most metals and plastics|
|2120||15-20 mins||30-40 mins||Methacrylate||Neutral||50ml||Bonds most metals and plastics|
|2120||15-20 mins||30-40 mins||Methacrylate||Neutral||400ml||Bonds most metals and plastics|
|2202||2-4 mins||4-6 mins||Methacrylate||Black||50ml||Bonds most metals and plastics|
|2202||2-4 mins||4-6 mins||Methacrylate||Black||490ml||Bonds most metals and plastics|
|2203||3-4 mins||7-10 mins||Methacrylate||Black||50ml||Bonds most metals and plastics|
|2203||3-4 mins||7-10 mins||Methacrylate||Black||490ml||Bonds most metals and plastics|
|2206||6-10 mins||12-15 mins||Methacrylate||Black||50ml||Bonds most metals and plastics|
|2206||6-10 mins||12-15 mins||Methacrylate||Black||490ml||Bonds most metals and plastics|
|2605||5-7 mins||10-12 mins||Epoxy||Clear||50ml||Clear, bonds most materials|
|2605||5-7 mins||10-12 mins||Epoxy||Clear||400ml||Clear, bonds most materials|
|2620||15-20 mins||30-40 mins||Epoxy||Clear||50ml||Clear, bonds most materials|
|2620||15-20 mins||30-40 mins||Epoxy||Clear||400ml||Clear, bonds most materials|
|2650||50 mins||80 mins||Epoxy||Clear||50ml||Clear, bonds most materials|
|2650||50 mins||80 mins||Epoxy||Clear||400ml||Clear, bonds most materials|
|25-5||5-7 mins||10-12 mins||Polyurethane||Neutral||50ml||Bonds most metals and plastics|
|25-5||5-7 mins||10-12 mins||Polyurethane||Neutral||400ml||Bonds most metals and plastic|
