Structural Glazing Tape

From: £5.46

SS = Single Sided Tape

DS = Double Sided Tape

Dims = Width x Thickness x Length

SKU: N/A Categories: , ,

Description

Structural Glazing Tape (SGT), is a specialised adhesive system used in the assembly of windows, doors, and skylights, collectively referred to as fenestration units.

Our SGT acts as a high-performance bonding interface system, positioned between the integrated glass unit (IGU) and frame.  Particularly within commercial glazing applications such as curtain walls, skylights, and storefronts. It has fast recovery from compression and has been tested to ASTM E96-2005 water vapour transmission to determine open cell airflow structure.

In contrast to conventional sealing techniques that depend primarily on silicone caulking, this tape provides a mechanically robust connection that sustains the IGU’s load while concurrently delivering environmental sealing performance.  The tape will give an effective weather proof seal in double sided format. However, some users use a single sided version and apply a silicone seal in addition to give a more durable seal. Please see our Clear Glazing Silicone for more information.

This tape provides a high-strength, resilient bond between IGUs and support frames within fenestration assemblies. Its ability to accommodate differential movement and resist environmental factors makes it a preferred solution for achieving long-term durability and architectural precision in structural glazing systems.

Constructed primarily from acrylic foam, structural glazing tapes exhibit elevated adhesion strength and mechanical flexibility. These properties enable the system to accommodate dynamic stresses such as thermal expansion and contraction, thus preserving seal integrity over long-term service intervals.

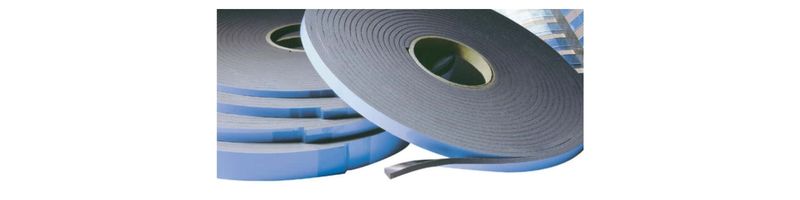

Structural glazing tape used in the onstruction industry



Application of Structural Glazing Tape

During installation, the structural glazing tape is precisely applied to the glazing frame to define the bonding surface. The IGU is then accurately aligned and mounted onto the tape, generating a consistent precise space between the glass and the frame. This gap is can  subsequently be filled with a secondary silicone—to bolster resistance against air and moisture ingress and enhance overall structural cohesion.

Popular applications for SGT

  • Curtain walls and storefront systems
  • Glass-to-metal bonding
  • Skylights and canopies
  • Point-fixed glazing systems
  • Unitised façade systems

Glazing tape diagram



Performance & Features of Structural Glazing Tape

Our tape offers several performance and features, such as:

Improved Visual Aesthetics: Eliminates the need for visible caulking, resulting in clean and architecturally appealing sightlines.

Accelerated Installation: Allows immediate handling post-application, significantly reducing project timelines associated with curing.

Simplified Fabrication: Streamlines the assembly process relative to traditional wet glazing methods, which require extended cure durations and complex tooling.

Environmental Durability
Engineered for high endurance, structural glazing tapes maintain adhesive and mechanical integrity under prolonged exposure to ultraviolet radiation, temperature cycling, and moisture. These properties ensure consistent performance in demanding climatic conditions without material degradation.

You may also be interested in our Premium Glazing Silicone or Expanding Foam Tapes.

To achieve the best results with tapes or adhesives, we recommend using a primer for adhesives, a UV identifiable primer and our IPA cleaner degreaser with a micro lint free cloth, even when using trial kits. Surface preparation helps to achieve a long lasting, clean bond.

IPA Cleaner

Purchasing Structural Glazing Tape

For other variations and quantities or to request to trial a product not listed here, please contact us. All prices are inclusive of VAT.

If you have any questions, do not hesitate to contact us via the yellow chatbox, fill out our online contact form, email us at [email protected], or call us directly on +44 (0) 121 378 2909.

Additional information

WeightN/A
Size

SGT86SS 8x6mm x15m, SGT126SS 12x6mm x 15m, SGT156SS 15x6mm x 15m, SGT186SS 18x6mm x 15m, SGT256SS 25x6mm x 15m, SGT88SS 8x8mm x 7.5m, SGT128SS 12x8mm x 7.5m, SGT158SS 15x8mm x 7.5m, SGT188SS 18x8mm x 7.5m, SGT258SS 25x8mm x 7.5m, SGT66DS 6x6mm x 15m, SGT96DS 9x6mm x 15m, SGT126DS 12x6mm x 15m, SGT206DS 20x6mm x 15m, SGT68DS 6x8mm x 15m, SGT98DS 9x8mm x 7.5m, SGT128DS 12x8mm x 7.5m, SGT208DS 20x8mm x 7.5m
