Description

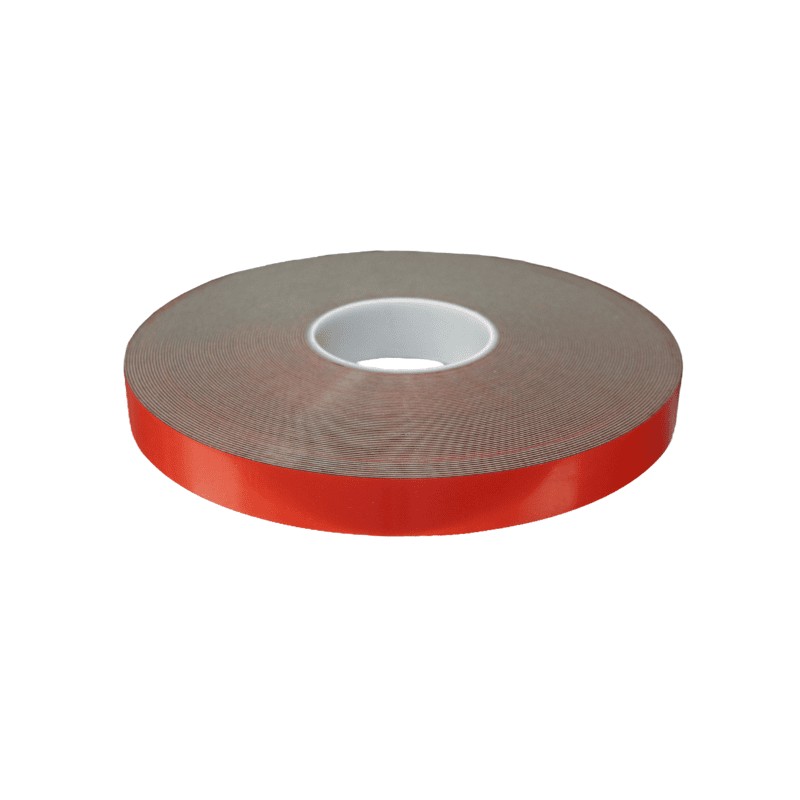

The 60FRHB is a premium flame-retardant, high-bond foamed acrylic tape designed for strength, safety, and reliability. This tape is engineered using the latest anti-combustion technology, to self extinguish when exposed to heat and flame. Combining strong bonding power with built-in flame resistance. Made from acrylic foam laminated with a specially formulated acrylic adhesive, both layers are infused with fire-resistant additives. Finished in black with a red film liner.
The 60FRHB Flame Retardant High Bond Tape is designed for critical bonding applications where flammability, smoke generation, or toxic gas release cannot be compromised. Its versatility makes it a trusted solution across multiple industries, including Construction, Rail, Transportation, Marine and MOD.
Temperature range: -30°C to +150°C
Thickness: 1mm
Available in 25mm standard x 33m (other variations available upon request).
Adheres to the construction and rail industry European Standards:
EN 13501-1: 2007 + A1 : 2009 (Construction Industry test to measure spread of flame, smoke generation and burning droplets)
EN 45545-2: 2013 + A1: 2015 (Rail Industry test to measure spread of flame, heat released and toxicity)
BS 6853: 1999 Annex B.2 (Withdrawn)/S1085 Attachment A.2 (Rail Industry / London Underground test to measure toxicity)
UL94: 2013 (US Underwriters Laboratory simple test for flammability and self-extinguishing properties)
Key Features of 60FRHB Flame Retardant High Bond Tape
- Self-extinguishing: If exposed to flame, the tape puts itself out — with no melting, dripping, or spreading.
- Safe in application: When used as intended in bonded assemblies, it does not increase the risk of flammability, smoke, or toxicity.
- High bond strength: Provides durable, long-lasting adhesion across a wide range of applications.
Application examples using 60FRHB Flame Retardant High Bond Tape
Construction – Secure cladding, wall panels, elevator panels and partition systems.
Rail / Transportation – Ideal for the rail sector and London Underground, bonding signage, wall panels, trims, tactile surfaces, and more — suitable for stations, tunnels, and even rolling stock.
Marine & Offshore – Reliable for demanding environments — from bonding signage to fixing cladding, wall panels, and even ballistic protection systems.
Aerospace & Defence (MOD) – Used for mounting trims, panels, signage, trolley construction, and equipment fascias in aerospace and military applications.
Automotive & Commercial Vehicles – Perfect for mounting interior trims, panels, and badges.
Electronics – A safe solution for component mounting, fascias, and housings, where flame resistance is vital.
How to apply 60FRHB Flame Retardant High Bond Tape
Before applying this tape, surfaces should be clean, dry and free of any dirt, dust and grease. For the best results, we recommend using CTA IPA Cleaner Degreaser.
- Use sufficient pressure over the whole surface at room temperature to ensure maximum adhesion to substrates.
- The ideal application temperature is between 15 – 25°C.
- Primers can increase the bond durability and surface tension for difficult to bond materials. We recommend CTA Primer or CTA UV Identifiable Primer to achieve the best results.
- Ensure uniform stress distribution.
For more information, read our guide to surface preparation for adhesives and best working practice.
Purchasing special thicknesses
Our 60FRHB Flame Retardant High Bond Tape is available to purchase online in single rolls at 1mm thickness. For other variations please contact us. All prices are inclusive of VAT.
